HSM-ME
This machine is newly designed by adopting most advanced granite slab polishing technology from which this proprietary technology derives. It has advantages of superior materials, reasonable structure, perfect manufacturing process, stable performance, high efficiency and energy saving and is extremely applicable to polishing slab transferred from big circular sawing machine.
HSM-500/600
This machine adopts PLC control system and high precision encoders, it also use human touch screen operation interface. It adopts double “V” guide board structure for lifting. All these make the machine with high efficiency, high precision, easy operation, stable performance characteristics. It’suitable for all kinds of marble, granite, artificial stone cutting.
HSM-WJ3020
Machine features:
Computer control is adopted and graph to be used for next process can be edited during operation so as to increase working efficiency.It can cut all kinds of materials except diamond and alloy steel.
High accuracy guide screws imported from Taiwan are used for ...
HSM-QC08
The machine absorbs domestic and foreign advanced technology, and integrates our own specialized experience of more than twenty years. It uses gantry structure, advanced PLC system and four cutting wheels. It is used in special-shape processing of line and big circular arc plates. It has more advantages, such as new structure, easy operation, stable performance, high precision allocation, and high efficiency and so on.
HSM-WJ3020
Number of views:
1000
HSM-WJ3020
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number
Suitable for stone:
Marble,Granite,Ceramic Stone,Man Made Rock,Conform To Material
Heads:
8,10,12,14,16,18
Quantity
-
+
Stock:
Category
Back to list
1
DETAILS
Parameters
Machine features:
1. Computer control is adopted and graph to be used for next process can be edited during operation so as to increase working efficiency.
2. It can cut all kinds of materials except diamond and alloy steel.
3. High accuracy guide screws imported from Taiwan are used for guiding on axes X and Y and immersed in oil for lubrication. Labyrinth waterproof and sandproof structure is adopted to ensure machining accuracy of platform and extend service life of guide screws to the utmost extent.
4. A reliable pneumatic high pressure water regulator is installed at cutting tool so as to increase machining efficiency.
5. The innovative integrated accessible automatic slab turning mechanism is safe and reliable and saves labour during placing big slabs while placing small slab has high effciency.
6. With anglecutting, could solve the uneven cutting surface impact of the lower part that caused the assembly quality problem, it could directly glued for assembly without polish again, greatly reduces the labor force, improve production efficiency.

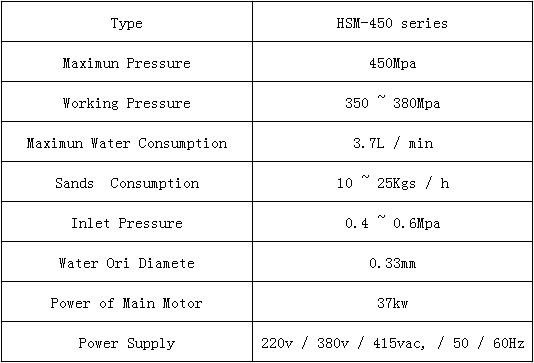

HIGH PRESSURE WATER JET PUMP TECHNICALPARAMETERS

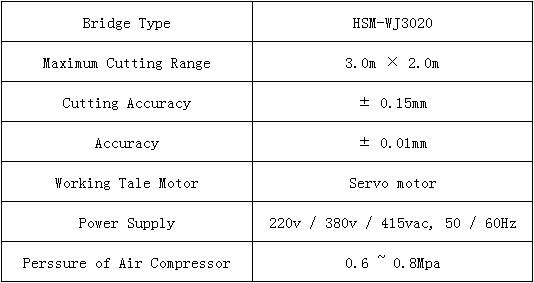

TECHNICAL PARAMETERS

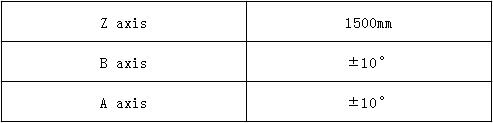

Optional five-axis technical parameters
